This auction for one Cable Line tracker tester set
PRODUCT INTRODUCTION:
This professional telephone and network cable tracking system, consisting of receiver and emitter, enables you to find where a cable is laid and whether or not. And, if so, whether there are any breaking points in the line. Compare the volume of the "tout" sound and the brightness of the signal indicator, Then you can find the target wire which has the highest volume and brightest indicator.
SPECIFICATIONS:
* Cable Assignment Test: Open, short and cross of LAN cable, 2-wire (RJ11)/4-wire (RJ45) Telephone cable
* Cable State Testing (2-wire): Line DC detecting and anode, cathode determination, Ringing signal detecting, Open, short and cross test.
* Powered by DC 9V battery (included).
* The max working current: emitter: <=10mA; Receiver: <=30mA
* Signal output electric status: 8Vp-p
* Signal transmission format: multi-frequency impulse
* Distance of signal transmission: >=3km

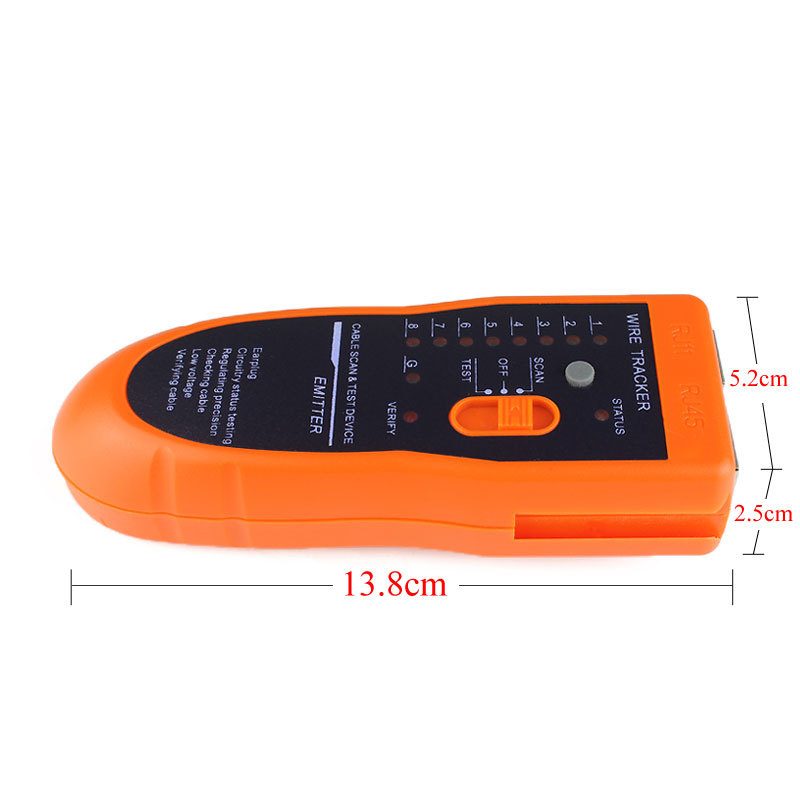

* Appearance dimension: 175 x 42 x 27mm(receiver); 126 x 49 x 34 (emitter)
* Color: Orange

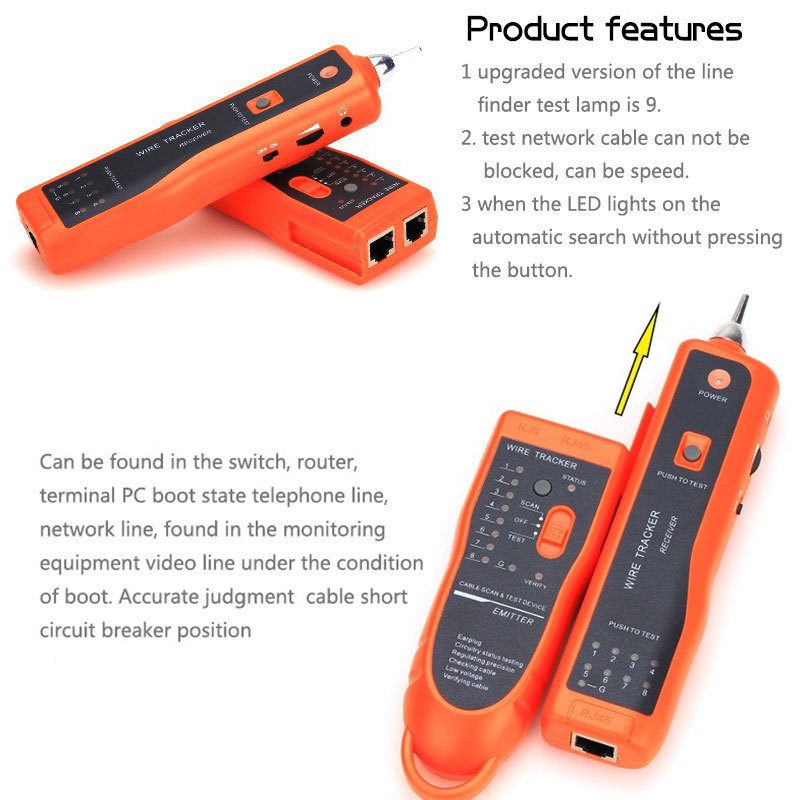

FEATURES:
* Trace telephone wire/LAN cable. Trace wire in electrical system. It can take place of cable tester.
* Verify LAN cable condition. Continuity test. Cable Assignment Test and Cable State Testing (2-wire).
* Low Battery Indication with Bright white LED flash light. Rapidly find the target wire from among plenty of telephone wires. Rapidly find the target wire from among plenty of network wires.
* Find target wire on all types of connected operating Ethernet switch /Router/PC.
PACKAGE INCLUDES:
1 x Emitter
1 x Receiver
1 x Earphone
1 x RJ11 adapter
1 x Alligator clip adapter
2 x 9V Battery
1 x Rj45 adapter
1 x Instruction manual
1x Toolkit

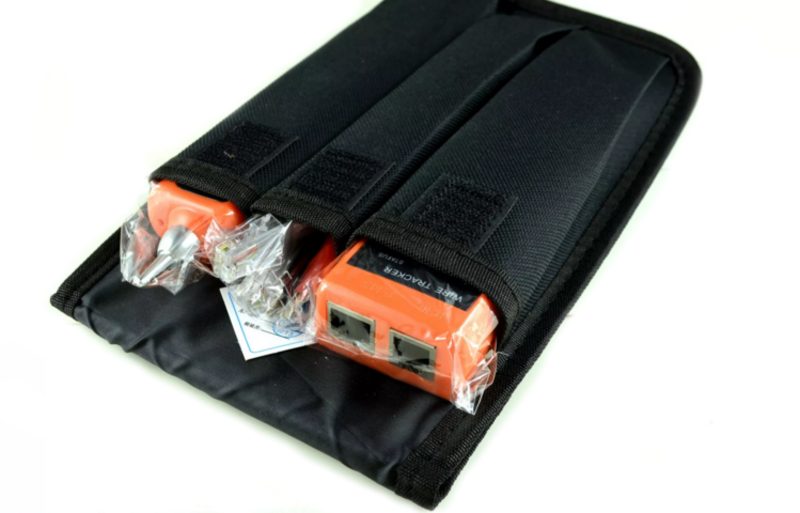

1x Tools Bag
